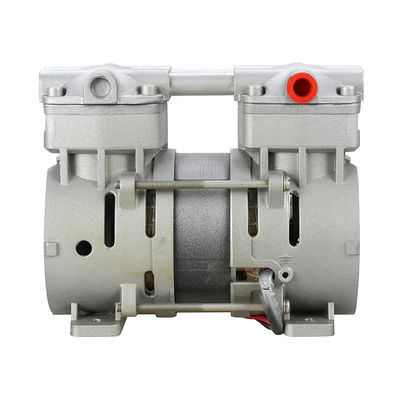

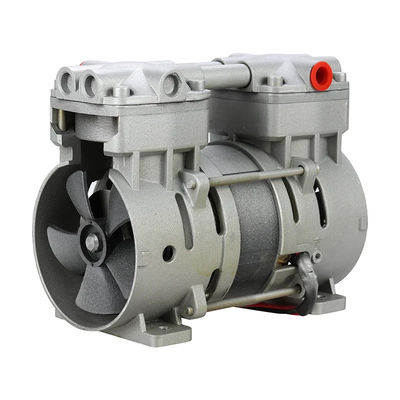

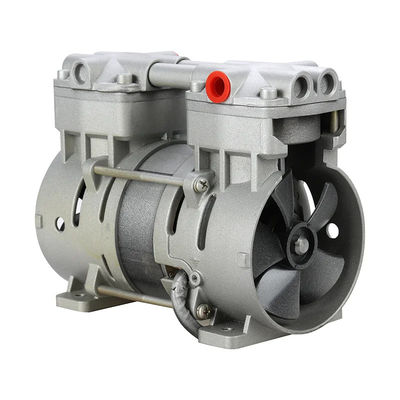

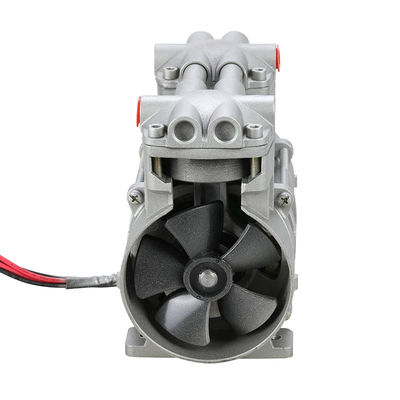

20LPM Small Type Piston Suction Pump Air Suction Pump HP-20V

20LPM Small Type Piston Suction Pump Air Suction Pump HP-20V
20LPM Small Type Piston Suction Pump Air Suction Pump HP-20V 20LPM Small Type Piston Suction Pump Air Suction Pump HP-20V 20LPM Small Type Piston Suction Pump Air Suction Pump HP-20V 20LPM Small Type Piston Suction Pump Air Suction Pump HP-20V

Large Image :  20LPM Small Type Piston Suction Pump Air Suction Pump HP-20V

Product Details:
Place of Origin: China
Brand Name: Microvacuum
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 50~100USD
Packaging Details: carton box
Delivery Time: 7~10 days
Payment Terms: L/C , T/T
Supply Ability: 5000pcs per month
Contact Now

20LPM Small Type Piston Suction Pump Air Suction Pump HP-20V

Description
Power: 0.09Kw/50Hz Max Flow: 30L/min
Max Pressure: -620mmHg Warranty: One Year Warranty

Product Features:

1. Small size, light weight

2. High efficiency and energy saving.

3. Safety and environment friendly

4. Low noise. low temperature rise, low vibration

5. Outstanding performance at a reasonable price

6. Security without oil, 100% maintenance-free

7. AC 110 V or 220 V



Application:

* Medical suction device, dental equipment

* Various instruments

* Automatic machine assembly

* Vary kinds of machinery.



Specification:



MODEL
           		 VOLTAGE
           		 FREQUENCY
           		 POWER
           		 AMPERAGE
           		 PRESSURE
           		 FLOW
           		 NOISE
           		 WEIGHT

UNIT             V             Hz             Kw             A             mmHg             L/min             dB             Kg
HP-20V             1Φ             50             0.11             1.45             -620             25             48             3.0
110V             60             0.085             0.95             -620             30             48
1Φ             50             0.09             0.5             -620             25             48             3.0
220V             60             0.085             0.4             -620             30             48





Applications:

20LPM Small Type Piston Suction Pump Air Suction Pump HP-20V 0

20LPM Small Type Piston Suction Pump Air Suction Pump HP-20V 120LPM Small Type Piston Suction Pump Air Suction Pump HP-20V 2



20LPM Small Type Piston Suction Pump Air Suction Pump HP-20V 3

20LPM Small Type Piston Suction Pump Air Suction Pump HP-20V 4

UNIT:mm

MODEL A B C D E F G H
HP-20V 94 179 140.5 94 70 M6 20 NPT1/4"
