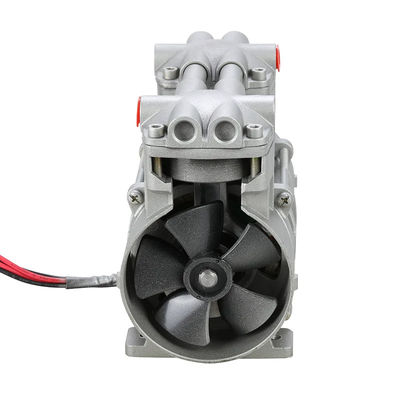

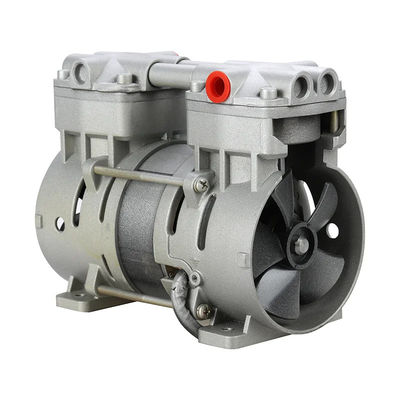

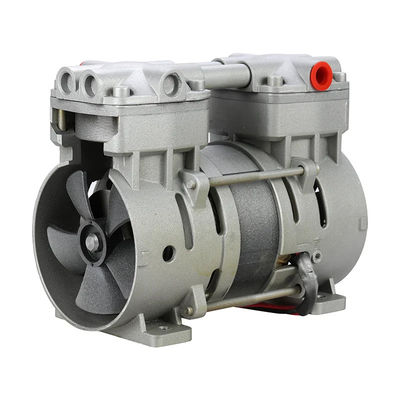

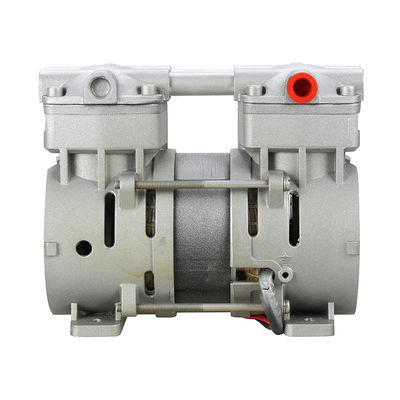

30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V

30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V
30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V 30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V 30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V 30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V

Large Image :  30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V

Product Details:
Place of Origin: China
Brand Name: Microvacuum
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 50~100USD
Packaging Details: carton box
Delivery Time: 7~10 days
Payment Terms: L/C , T/T
Supply Ability: 5000pcs per month
Contact Now

30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V

Description
Power: 0.14Kw/50Hz Max Flow: 440L/min
Max Pressure: -620mmHg Warranty: One Year Warranty

Product Features:

1. Small size, light weight

2. High efficiency and energy saving.

3. Safety and environment friendly

4. Low noise. low temperature rise, low vibration

5. Outstanding performance at a reasonable price

6. Security without oil, 100% maintenance-free

7. AC 110 V or 220 V



Application:

* Medical suction device, dental equipment

* Various instruments

* Automatic machine assembly

* Vary kinds of machinery.



Specification:



MODEL
               		 VOLTAGE
               		 FREQUENCY
               		 POWER
               		 AMPERAGE
               		 PRESSURE
               		 FLOW
               		 NOISE
               		 WEIGHT

UNIT                 V                 Hz                 Kw                 A                 mmHg                 L/min                 dB                 Kg
HP-30V                 1Φ                 50                 0.12                 1.7                 -620                 36                 50                 3.5
110V                 60                 0.10                  1.0                  -620                 44                 50
1Φ                 50                 0.14                 0.9                 -620                 36                 50                 3.5
220V                 60                 0.12                 0.6                 -620                 44                 50





Applications:

30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V 0

30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V 130LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V 2



30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V 3

30LPM Small Piston Type Air Suction Pump Flow High Vacuum Pump HP-30V 4

UNIT:mm

MODEL A B C D E F G H
HP-30V 94 179 140.5 94 70 M6 20 NPT1/4"
